Description

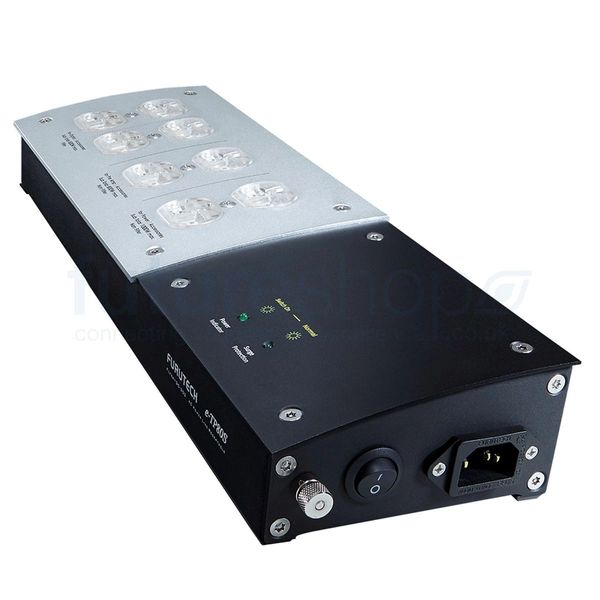

The e-TP80S is a sophisticated, luxuriously made power distributor that eliminates many common problems found with audio and video components caused by massively contaminated electrical power.
Furutech’s Two-Stage Cryogenic and Demagnetization Alpha Process
Using cutting-edge technology and materials, Furutech developed a low-temperature two-stage process that significantly improves every facet of audio and video performance. The treatment begins during the manufacturing process with a deep, conditioning cryogenic freeze of all metal parts. Using high-end refrigerants -- liquid N2 or He -- Furutech achieves temperatures of between -196 to -250℃. The treated parts actually change their molecular structure at these extremes of temperature relieving internal stress. The molecules bond together more tightly and the overall structure becomes more stable. This improves electrical conductivity and so power and signal transfer.
Formula GC-303
GC-303 is a special material Furutech bonds to the interior bottom-plate of the chassis (see illustration below) that absorbs any EMI (Electromagnetic Interference) noise that may be transmitted through your power source or generated by the internal fittings of the unit.
The Final Result
The 2-Step Cryogenic and Demagnetizing Alpha Process works in tandem with other design-in features to create the most optimized AC power transfer possible. Furutech’s total awareness and devotion to detail results in a greater sense of power, dynamics, and resolution, with cleaner, blacker backgrounds and a larger, more stable soundstage, vivid tonal colors and deeper extension at both ends of the frequency range. The e-TP80S will allow the delicacy, refinement and nuance of a performance through, along with micro- and macro-dynamics that will leave you breathlessly engaged. Displays of all types will exhibit greater, sharper resolution with less ghosting, color shift, “snow”, or vertical and horizontal lines.
e-TP80S specifications (US):
Voltage: AC 125V 50/60Hz
Fuse current: 15 A
Loading watt: 1875 W
Grounding outlet: 8 Holes
Overload protective type: Automatic circuit (replacement of varistor required after surge protection event)
Insulation volt.: AC 1500V 1 MINUTE 5mA
Leakage current: Under 1.0mA
Max. Spike voltage: 6000V
Max. Clamping voltage: 360V (8x20μSec)
Max. Surge current: 4500A (8x20μSec)
Noise Filter: -20db~92db (2~100Mhz)
Energy (2ms):40J
Insulation resistance: 300MΩ Above DC 500V
Body material: AL. ALLOY PLATE (PAINTED)
Power indicator: LED
Surge protection indicator: LED
Beautifully engineered gold plating treatment nonmagnetic Phosphor bronze receptacles.
Furutech’s high-end audio grade IEC inlet FI-06 (G)
Formula GC-303
Outward size: 400X130X60 mm approx.
Net Weight: 1.8Kg approx.
e-TP80ES specifications (EU):
Voltage: AC 250V 50/60Hz
Fuse current: 10 A
Loading watt: 2500 W
Grounding outlet: 8 Holes
Overload protective type: Automatic circuit (replacement of varistor required after surge protection event)
Insulation volt.: AC 1500V 1 MINUTE 5mA
Leakage current: Under 1.0mA
Max. Spike voltage: 6000V
Max. Clamping voltage: 360V (8x20μSec)
Max. Surge current: 4500A (8x20μSec)
Noise Filter: -20db~92db (2~100Mhz)
Energy (2ms):40J
Insulation resistance: 300MΩ Above DC 500V
Body material: AL. ALLOY PLATE (PAINTED)
Power indicator: LED
Surge protection indicator: LED
High performance Schuko socket FI-E30(G).
Furutech’s high-end audio grade IEC inlet FI-06 (G)
Formula GC-303
Outward size: 400X130X60 mm approx.
Net Weight: 1.9Kg approx.
