Description

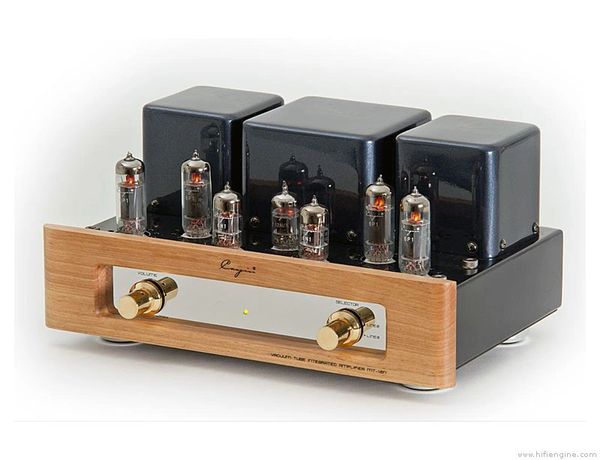

The Cayin MT-12 N is an integrated amplifier in a classic but no-frills design. The front panel of the 2 x 9 watt tube device is made of solid real wood with a chrome insert. The housing with its three encapsulated transformers shines in noble anthacite lacquer. Especially with 8 ohm boxes with high efficiency, the MT-12N reveals an impressive fine resolution and generous spatial image.
The Class A / B circuit was constructed with one 12AX7, two 6N1 and four 6P1 tubes. On the connection side, the Cayin MT-12 N offers separate taps for 4- or 8-ohm boxes as well as three line inputs with solid cinch sockets.
Specifications
Device type: Integrated amplifier
Frequency range: 10Hz - 35kHz (-3dB)
THD: 0.5% (1kHz)
External voltage separation: 86 dB
Input impedance: 100kOhm
Input sensitivity: 260mV
Tubes: 1 x 12AU7, 2 x 6N1, 4 x 6P1
Inputs: 3 x line
Circuit Class: A / B
Housing color: black
Front panel: real wood and chrome
Speaker impedance taps: 4 ohms - 8 ohms
Output power (RMS) at 4 and 8 ohms: 9W + 9W
Maximum power consumption: 80VA
Mains voltage: 230V AC / 50Hz
Dimensions (W x D x H): 330mm x 245mm x 160mm
Weight: 8.3 kg
