Description
Available on 1st week of December, 2023

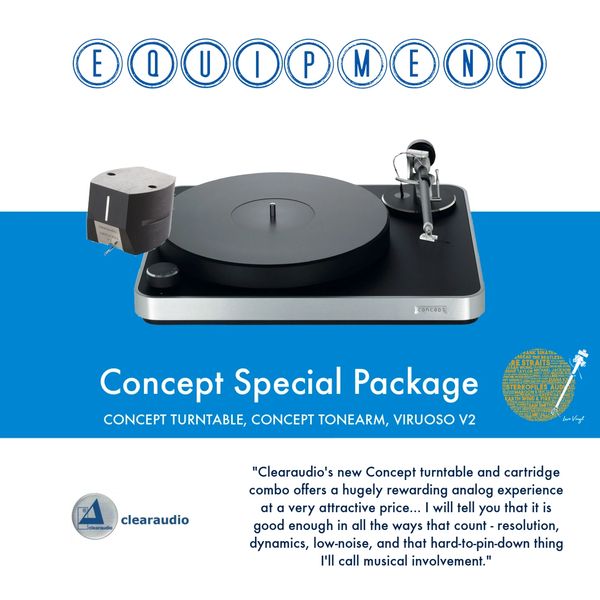

The Clearaudio Concept Turntable sets a new standard for turntable quality. The Concept is equipped with the innovative Concept Tonearm which uses a friction free magnetic bearing technology. This genuine, timeless and modern design guarantees a flawless musical enjoyment for decades to come.
Concept Turntable Features:
Aluminum radiused high mass plinth with compact footprint
2 piece Delrin 30mm thick platter
Polished tempered steel bearing shaft within sintered bronze bushings (not CMB)
Mirror polished teflon thrust pad
Belt-driven by a decoupled DC motor incorporating an extremely low noise bearing
33, 45 and 78 rpm at a turn of a dial
Concept tonearm features a friction-free magnetic bearing
Concept tonearm includes a hardwired phono cable with ground wire.
Concept Turntable Specifications:
Construction details: Resonance-optimised chassis, Friction free tonearm with magnetic bearing technology
Speed ranges: 33 1/3, 45 and 78 RPM
Drive unit (motor): Decoupled DC motor with low noise bearings
Bearing: Polished and tempered steel shaft in a sintered bronze bushing, runs on a mirror of Teflon
Platter: Black coloured POM, 30 mm thickness
Speed variation: ±0,04 %
Tonearm Cable Length: 1 meter
Weight: approx. 7,5 kg (16.5 lbs) incl. motor and tonearm
Dimensions (W/D/H in inches): approx. 16.54 x 13.78 x 5.51
Dimensions (W/D/H in mm): approx. 420 x 350 x 140
Virtuoso V2 Specification:
Frequency Response: 20 Hz - 20 kHz
Output voltage (1kHz, 5cm/s): ∼ 4.0 mV
Channel separation (1kHz): > 30 dB
Channel balance (1kHz): < 0.4 dB
Tracking ability: 90 µm
Tracking ability (recommended 1.8 -2.6 g): 2.4 g
Coil impedance (1kHz): 0.68 kΩ
Coil inductance: 0.40 H
Load resistance: 47 kΩ
Load capacitance: 100 pF
Cantilever: Aluminum
Weight: 8.4 g
