Description

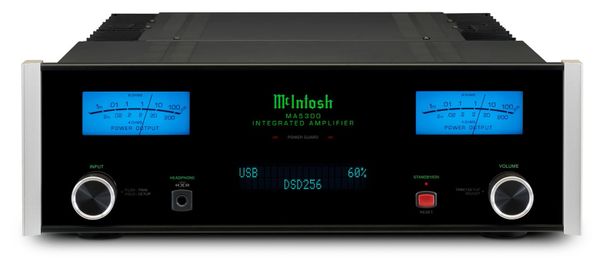

MA5300 2-Channel Integrated Amplifier
100 Watts into 8 Ohms
160 Watts into 4 Ohms
Comes with DA1 Digital Audio Module installed
MA5300 Integrated Amplifier is proof that big sound can come in small packages. It is our smallest solid state integrated amplifier in terms of both power output and physical size, making it an ideal choice for smaller spaces or for someone just beginning to assemble a home audio system. It’s a direct coupled amplifier that delivers 100 Watts per channel into 8 Ohm speakers or 160 Watts per channel into 4 Ohm speakers. New dual scale blue Watt meters give an accurate readout of power output for both 4 and 8 Ohm impedances.
SPECIFICATIONS:
Power Output per Channel: 100 watts into 8 Ohms / 160w into 4 Ohms
Speaker Impedance: 4 or 8 Ohms
Sensitivity Phono (Moving Magnet): 2.5mV
Vacuum Tube or Solid State: Solid State
Output Type: Direct Coupled
Output Meters: Yes
Dual Layer Chassis: Yes
Chassis Finish: Black painted steel
McIntosh Monogrammed Heatsinks™: Yes
CONNECTIVITY:
Balanced Input: 1
Phono Input MM : 1
Digital Output: 2
Unbalanced Output: 2
Unbalanced Input: 4
Digital MCT Input: 1
Digital Coaxial Input: 2
Digital USB Input: 1
DIGITAL AUDIO SPECIFICATIONS:
DAC Type: 8-channel / 32-bit/384kHz PCM/ DSD, Quad Balanced
Digital MCT Input Sample Rate: 16-bit/44.1kHz (CD) DSD64 (SACD)
