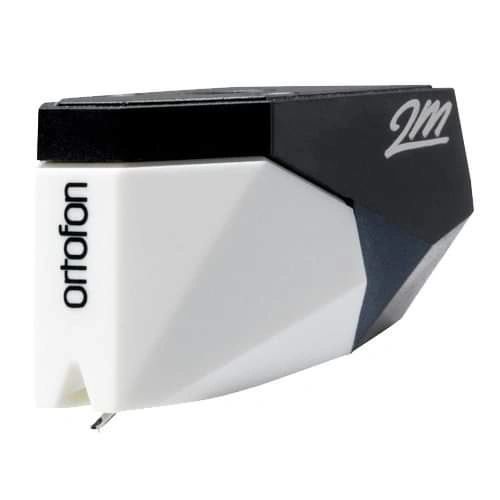

ORTOFON 2M MONO MM CARTRIDGE 4.0mV
The Ortofon 2M Mono MM Cartridge features an improved engine, which provides a high level of sonic accuracy!
The Ortofon 2M features a Nude Spherical stylus that is an optimal solution for playing mono microgroove LP vinyl records!
The 2M Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.
The 2M Series is designed for precise and accurate retrieval of the information in the record groove:
The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.
Output voltage at 1000 Hz, 5cm/sec.: 4 mV
Channel balance at 1 kHz -
Channel separation at 1 kHz -
Channel separation at 15 kHz -
Frequency range at: 3dB : 20-22.000 Hz
Frequency response: 20-20.000 Hz + 3 /: 1 dB
Tracking ability at 315Hz at recommended tracking force: 70 µm
Compliance, dynamic, lateral: 18 µm/mN
Stylus type: Nude Spherical
Stylus tip radius: R18 µm
Tracking force range : 1,6-2,0g (16-20 mN)
Tracking force, recommended: 1,8 g (18 mN)
Tracking angle: 20°
Internal impedance, DC resistance : 700 Ohm
Internal inductance: 350 mH
Recommended load resistance : 47 kOhm
Recommended load capacitance : 150-300 pF
Cartridge colour, body/stylus: Black/White
Cartridge weight without screws : 7,2 g
