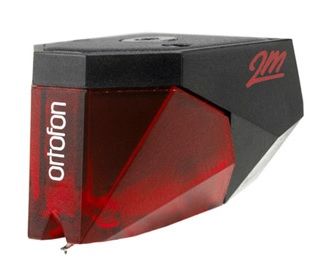

ORTOFON 2M RED MM CARTRIDGE 5.5mV
The 2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth!
The Ortofon 2M Red MM Cartridge features an improved engine, which provides an increased output of 5.5mV and an optimized sound reproduction and a high level of sonic accuracy & a tipped Elliptical diamond and split pole pins with a copper wire. The 2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth!
The 2M Series is designed for precise and accurate retrieval of the information in the record groove:
The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.
Output voltage at 1000 Hz, 5cm/sec.: 5,5 mV
Channel balance at 1 kHz : 1,5 dB
Channel separation at 1 kHz: 22 dB
Channel separation at 15 kHz: 15 dB
Frequency range at - 3dB: 20-22.000 Hz
Frequency response: 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force: 70 µm
Compliance, dynamic, lateral: 20 µm/mN
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 1,6-2,0g (16-20 mN)
Tracking force, recommended: 1,8 g (18 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 1,3 kOhm
Internal inductance: 700 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF
Cartridge colour, body/stylus: Black/Red
Cartridge weight: 7,2 g
