Description

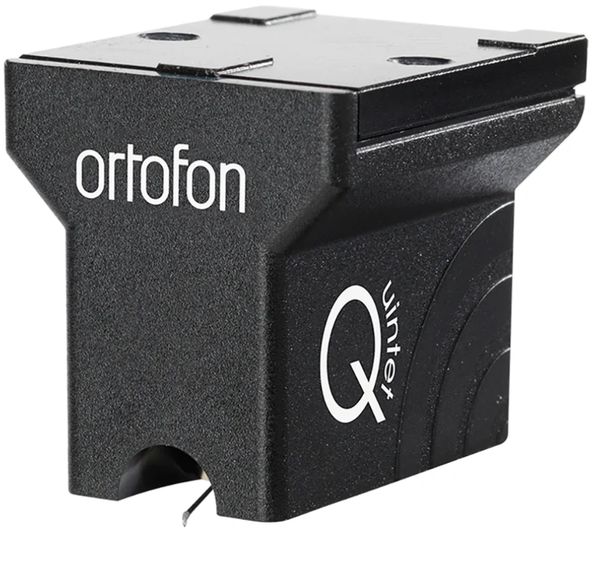

The Quintet Black is the best example of Quintet’s overall excellence.
The Quintet Black is graced with a Nude Shibata diamond, considered one of the best stylus profiles available, mounted on a high-performance Boron cantilever. The Shibata’s slim, highly polished profile allows an exceedingly wide contact area to the walls of the groove and ensures detailed and pure reproduction thoughout the spectrum, including even the most high frequency groove information. Unfettered by musical genre, the Quintet Black is the closest to Ortofon’s true accuracy of sound in the Quintet series.
Specifications
Output voltage at 1000 Hz, 5cm/sec: 0.3 mV
Channel balance at 1 kHz: < 1.0 dB
Channel separation at 1 kHz: > 23 dB
Channel separation at 15 kHz: > 15 dB
Frequency range at - 3dB: 20 - 25,000 Hz
Frequency response: 20-20,000 Hz +/- 1.5 dB
Tracking ability at 315Hz at recommended tracking force: 80 µm
Compliance(dynamic, lateral): 15 µm/mN
Stylus type: Nude Shibata on Boron cantilever
Stylus tip radius: r/R 6/50 µm
Tracking force range: 2.1-2.5 g (21-25 mN)
Tracking force, recommended: 2.3 g (23 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 5 Ohm
Recommended load impedance: > 20 Ohm
Cartridge body material: ABS/Aluminium
Coil wire material: Aucurum
Cartridge color: Black
Cartridge weight: 9 g
