Description

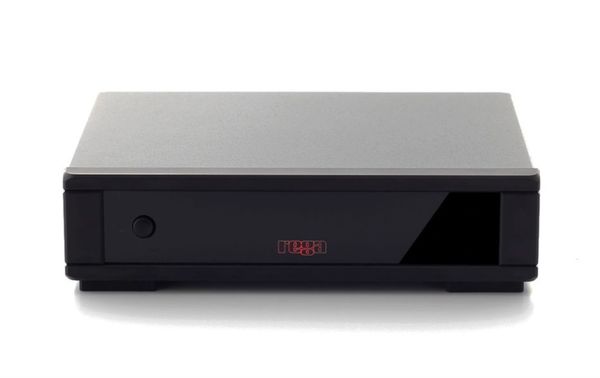

The Fono MM MK5 phono stage has been designed to be effective, easy to use and above all, to reproduce music. The Fono MM MK5 uses a fully discrete, cascaded, complementary amplifier input stage, a configuration designed to optimise the performance of your moving magnet cartridge. Now housed in a brand new redesigned case to match the new Fono MC and Rega’s latest range of electronic components offering a modern look guaranteed to integrate in to any hi-fi system.
KEY FEATURES
- Dedicated Moving Magnet stage
- Simple connectivity and operation
- Custom case design
- Two stage RIAA Equalization
TECHNICAL SPECIFICATIONS
Input Sensitivity: 1.7 mV for 200 mV Output
Input Loading: 47 kΩ in parallel with 100 pF
Maximum Input Level: 60 mV at 1 kHz
Gain: 41.4 dB at 1 kHz
Output Impedance: 200 Ω
Recommended Minimum Output Load Resistance: 5 kΩ
Frequency response (50KΩ output load): 15 Hz (-3 dB) to 100 kHz (-0.2 dB)
RIAA Accuracy (50 kΩ Output Load): Better than ±0.2 dB 100 Hz to 100 kHz
Power Requirements: 24 V AC at 80 mA maximum
