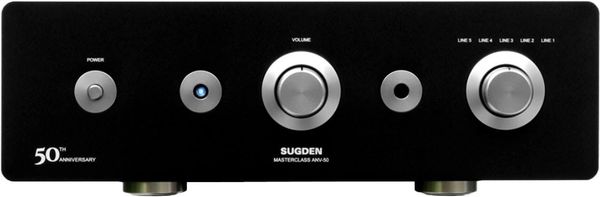

Masterclass ANV-50 Integrated Amplifier
The Masterclass ANV-50 is a new integrated amplifier released to celebrate Sugden Audio’s fiftieth anniversary.
It is a unique design with many innovative features and specially developed audio circuits.
The ANV-50 has at its heart, a pure class A amplifier and this is coupled to an advanced ‘ideal’ final output stage. This unique two stage amplification system guarantees our signature pure class A sound, with the ability to drive the vast majority of loudspeaker systems.
Specifications
Line Input Sensitivity 110mV @ zero attenuation for full output
Power Output 50 Watts into 8 Ohms both channels working
100 Watts into 4 Ohms both channels working
Frequency Response +/-1dB 12Hz-45kHz
Bandwidth 8Hz-86kHz
Signal to Noise >85dB
Gross Weight (packed) 11kgs
Dimensions 143 x 430 x 370mm (hwd)
