Description

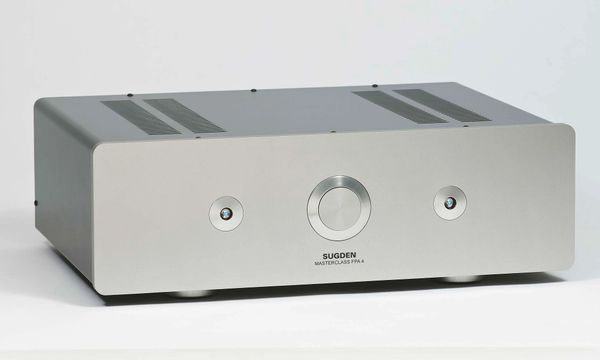

Masterclass Family. A Pure Class ‘A’ Power Amplifier of 30 watts per channel. This output stage is of the classic Sugden single ended design which has given musical satisfaction to thousands of discerning music lovers over many years.
Facilities:
Inputs – Stereo line level & stereo balanced.
Outputs – Stereo pair multi way locking binding posts.
Specifications:
Input sensitivity – 1V for full output.
Power output – 30 Watts into 8 ohms both channels working (depending on input voltage).
Frequency response – 0dB 18Hz – 95kHz.
Bandwidth – 3dB points 10Hz – 125kHz.
Signal to noise – >82dB.
Distortion at 1 Watt,1 kHz – <0.04%.
Net weight – 15kgs.
