Description
The simplest way of enjoying vinyl records

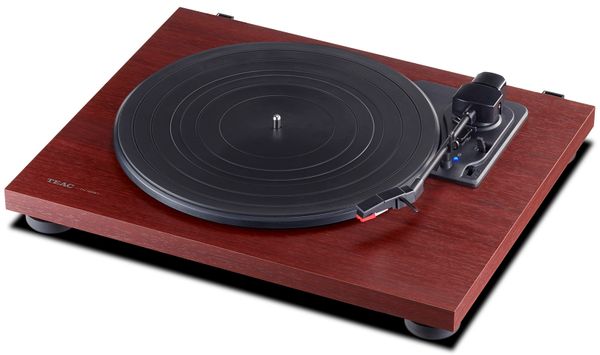

The TN-180BT brings you a totally new way of listening to vinyl records with its Bluetooth® capability. No extra cost for hi-fi components or complicated wiring is required. Only Bluetooth® speakers or headphones you might have for iPhones are required to enjoy the world of vinyl records.
Designed for music enthusiasts, the belt-drive motor ensures a clearer sound than direct-drive DJ players, while selectable outputs, Phono, Line or Bluetooth allow you to connect any type of amplifiers, powered speakers or Bluetooth devices.
Unlike many budget turntables, the TN-180BT employs a single wooden board cabinet with high-density MDF to dampen vibrations and provide clearer and richer sound, while 3-speed and auto-return turntable mechanism.
For music lovers who have been collecting vinyl records for decades or those just starting out, TEAC’s TN-180BT delivers the true sound of vinyl records. Available in cherry, black and white finish.
Features:
Belt-drive turntable
Built-in Bluetooth® transmitter to BT speakers or headphones
Built-in Phono equalizing amplifier
PHONO, LINE and Bluetooth® outputs
High-density MDF cabinet for improved resonance reduction
3-speed (33-1/3, 45, 78 rpm)
Auto-return and manual arm lifter
Sleek design in cherry, black or white finish
Spec description:
Turntable section
Motor DC Motor
Speed 33 1/3 RPM, 45 RPM, 78 RPM
Wow and Flutter 0.25%
Signal-to-Noise Ratio 64dB or higher (A-weighted, 20kHz LPF)
Platter Plastic
Diameter of Platter 12", 30cm
Main Unit Dimension: 16.5” x 4.1” x 14.0” / 420 x 105 x 356mm (W x H x D), 10.8 lbs. / 4.9kg
Package Dimension: 21.6” x 8.7” x 20.0” / 548ｘ221 x 431mm (W x H x D) /16.6 lbs. / 7.5kg
Tonearm section
Type Static Balance, Straight
Effective Arm Length 7.9", 200mm
Stylus Pressure Range 0 to 5g
Cartridge section
Type MM-type
Output Voltage 2.4mV (±3dB)
Analog Output section
Connectors RCA Pin x 1 pair (Chrome-plated)
Output Voltage
PHONO 2.4mV (±3dB)
LINE 149mV (–16.5dBV)
Bluetooth® section
Range Approx. 30ft. / 10 meters
Supported Codec SBC
General
Power AC 100 to 240V, 50/60Hz
Power Consumption < 1.5W (< 0.2W at Standby)
Overall Dimensions
(W x H x D) 16.5" x 4.1" x 14.0"
420 x 105 x 356 mm
Weight Approx. 10.8 lbs. 4.9 kg
Accessories Rubber Sheet, EP Adapter, Dust Cover, Rubber Feet fro Dust Cover x2, Hinge x2, RCA Audio Cable, AC Adapter (GPE053A-120050-Z), Owner's Manual (including Warranty Card)
Replacement Stylus STL-122
※ RoHS complied.
※ Specification and design subject to change.
