Description

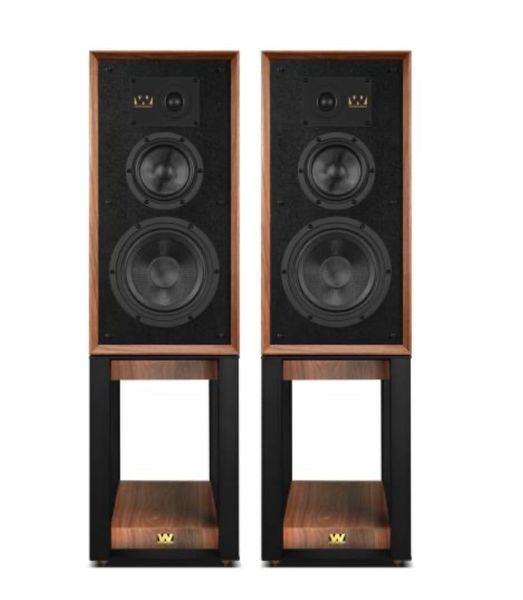

The new Wharfedale SUPER LINTON represents a significant milestone in innovation for Wharfedale, being a standout addition to the globally best-selling Heritage series.
This updated model is part of a line of award-winning speakers that are renowned for their exceptional musicality and have won the hearts of tens of thousands of music lovers. Led by Peter Comeau, the Director of Acoustic Design, Wharfedale’s engineers revisited every aspect of the speaker’s design, including the cabinet, drive units, and crossover. The outcome of their efforts is the newly upgraded Super Linton.
A new split-PCB crossover design blends the drive units together while avoiding electromagnetic interference. The crossover also benefits from custom-specified components chosen for neutrality and optimum signal transfer. SUPER LINTON even goes as far as employing PE dielectric and LCOFC cabling for pristine signal transfer.
|
Model |
SUPER LINTON |
|
General description |
3-way vented-box / standmount |
|
Design philosophy and core technology |
|
|
Enclosure type |
Bass Reflex |
|
Transducer complement |
3-way |
|
ABR |
- |
|
Bass driver |
8"(200mm) Black Woven Kevlar Cone |
|
Midrange driver |
5"(135mm) Black Woven Kevlar Cone |
|
Treble driver |
1"(25mm) Soft Dome |
|
Sensitivity (2.83V @ 1m) |
90dB |
|
Recommended amplifier power |
25 - 200W |
|
Peak SPL |
110dB |
|
Nominal impedance |
6Ω (Compatible 8Ω) |
|
Minimum impedance |
3.9Ω |
|
Frequency response(+/-3dB) |
39Hz - 20kHz |
|
Bass extension(-6dB) |
32Hz |
|
Crossover frequency |
550Hz & 2.5kHz |
|
Cabinet Volume (in litres) |
6.6L, 33.4L |
|
Dimensions (mm) |
- |
|
Height (on plinth) |
605mm |
|
Width |
300mm |
|
Depth (with terminals) |
(330+20)mm |
|
Carton size |
465 x 435 x 740mm |
|
Net weight |
19.8kg / pcs |
|
Gross weight |
22kg / ctn |
